WestTop ® ceramic valve manufacturers, using high-

performance ceramics as the main raw material, produce a series of ceramic ball valve, ceramic discharge valve, ceramic double gate valve, ceramic rotary swing valve, ceramic dry ash valve, ceramic slag discharge valve, ceramic slurry valve, ceramic butterfly valve, ceramic check valve and other ceramic valves. It solves the fatal defects of traditional metal valves, such as poor corrosion resistance, poor erosion resistance and easy wear. The service life is more than 10 times that of metal valves. Products are widely used in petroleum, chemical, electric power, metallurgy, mining, cement, coal, papermaking, water supply and other industries.

The perfect combination of high-tech ceramics and modern technology

• Westtop high-quality ceramic materials are used ;
• finely crafted, micron-level accuracy ;
• wear resistance, corrosion resistance, high temperature resistance, erosion resistance ;
• long life, service life is 10 times that of stainless steel ball valve ;
• the valve ball and the valve seat are perfectly combined, the sealing performance is good, and the zero leakage is ensured.
• Good self-lubricating and self-cleaning performance ;

• the structure is compact, the start-up is flexible and reliable, and the adjustable ratio is large.

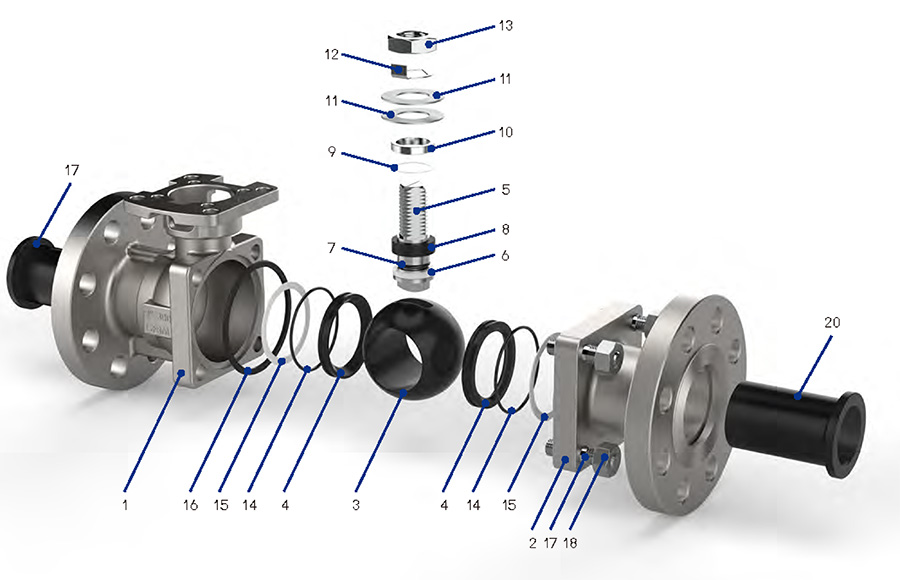

Ceramic Valve structure

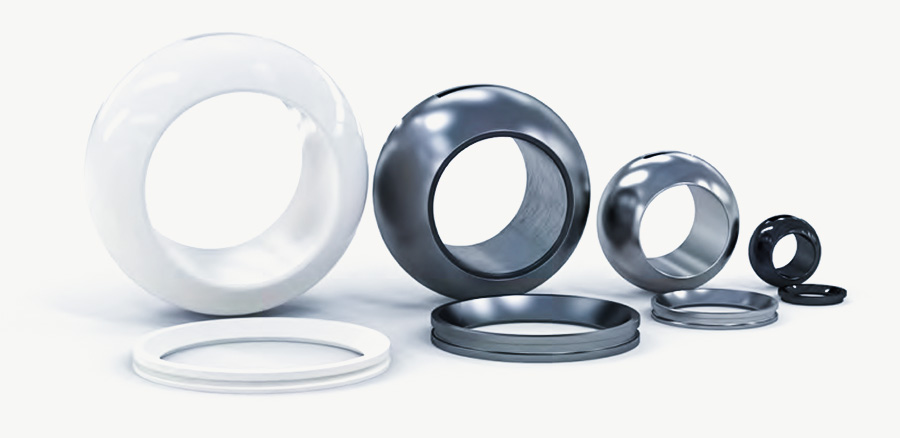

The main material of the valve has excellent chemical properties and mechanical properties. The three-section structure design of the shell has a strong shape and beautiful appearance. The surface of the valve stem is subjected to anti-corrosion nitriding or quenching and tempering treatment to ensure that the valve stem has good mechanical properties and corrosion resistance. The built-in buffer compensation elastic washer ensures stable and good sealing. And in the medium containing impurities, it is not easy to jam and cause the ball to break. The contact surface of the valve ball and seat is finely processed, so that the ball is closely combined with the inner R and outer R of the seat. The ball circle has high precision, good surface quality, light torque of the whole valve, small resistance and zero leakage of sealing.

Ceramic valve standards

Wear-resistant ceramic valves can be produced according to GB, ANSI, JIS, DIN and other standards, and can also be customized according to customer needs.

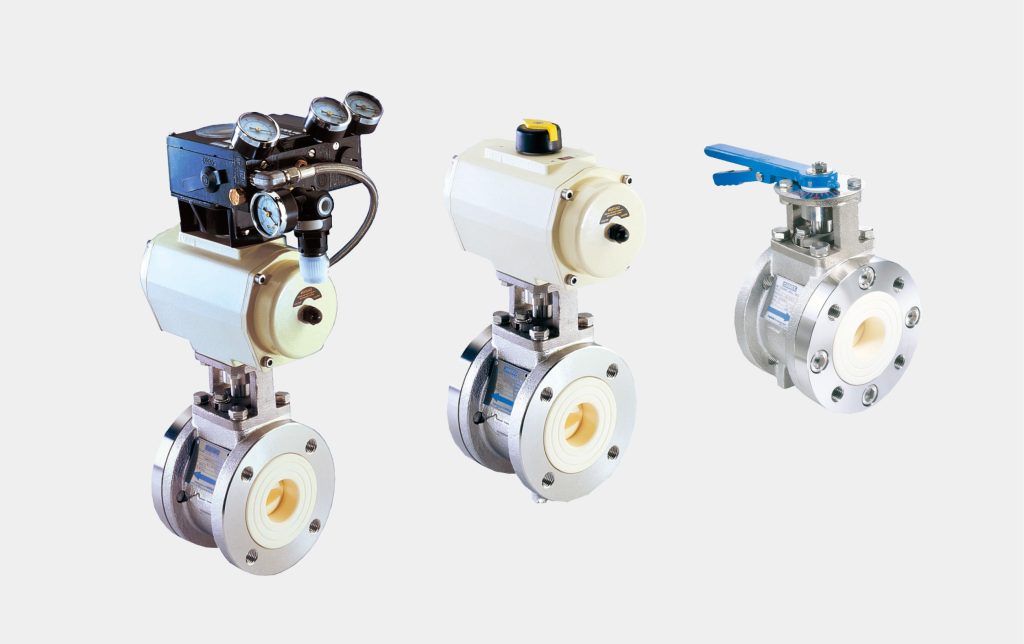

ceramic ball valve

Performance characteristics

• The contact parts with the medium are high-performance structural ceramics with good wear resistance, corrosion resistance and thermal insulation properties.
• Structural ceramics have self-lubrication, good sealing performance, up to zero leakage ;
• the service life is long, which is 4 times that of titanium alloy valve and Monel valve.

Applicable media

        Powdery particles such as silicon powder, pulverized coal, cinder, etc. ; corrosion properties of liquid, such as gypsum liquid, sulfuric acid, hydrochloric acid, etc.

Application

        Power, petroleum, chemical, metallurgical, mining, sewage treatment enterprises high wear, strong corrosion, high temperature, high pressure and other harsh conditions.

Polysilicon special ball valve

Nominal diameter : DN15-250MM
Nominal pressure : PN1.0-4.0MPa
Use temperature : ≤ 300 °C

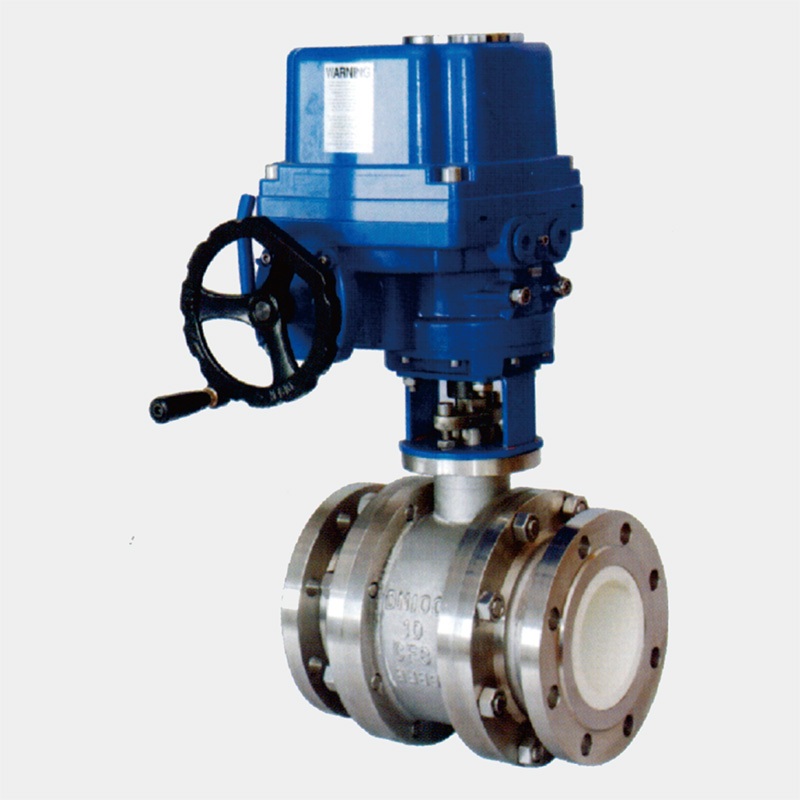

Q941TC electric ceramic ball valve

Nominal diameter : DN15-300MM
Nominal pressure : PN1.0-4.0MPa
Use temperature : ≤ 200 °C

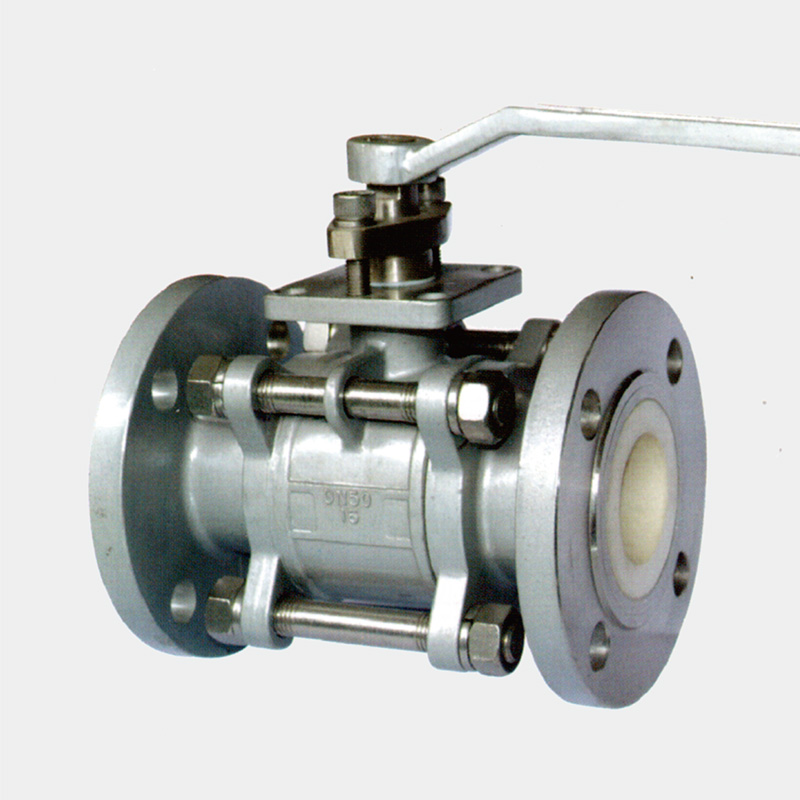

Q41TC manual ceramic ball valve

Nominal diameter : DN15-300MM
Nominal pressure : PN1.6MPa
Use temperature : ≤ 200 °C

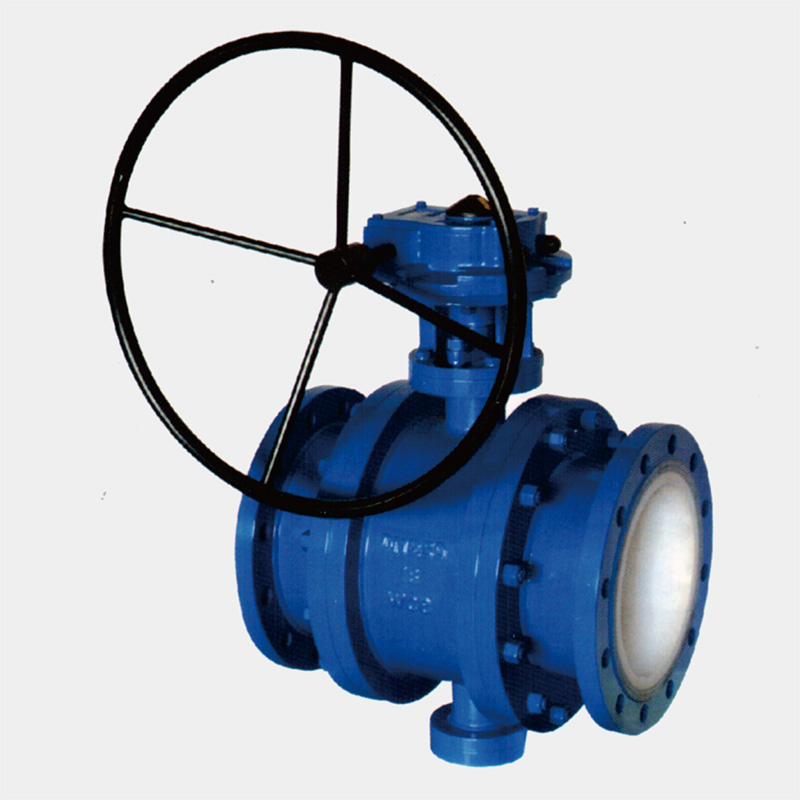

Q347TC turbine ceramic ball valve

Nominal diameter : DN15-300MM
Nominal pressure : PN1.0-4.0MPa
Use temperature : ≤ 200 °C

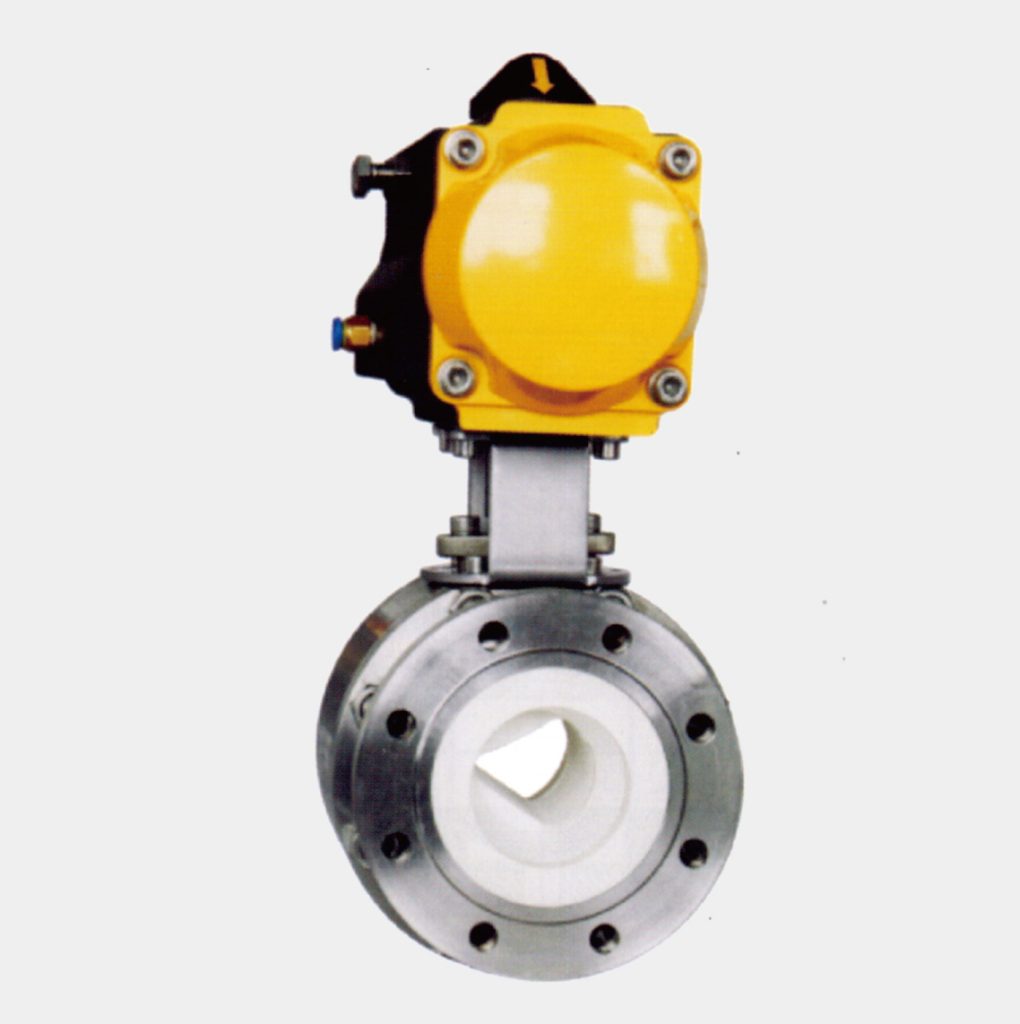

Q641TC V-type pneumatic ceramic ball valve

Nominal diameter : DN32-200MM  Nominal pressure : PN1.0-2.5MPa  Use temperature : ≤ 200 °C

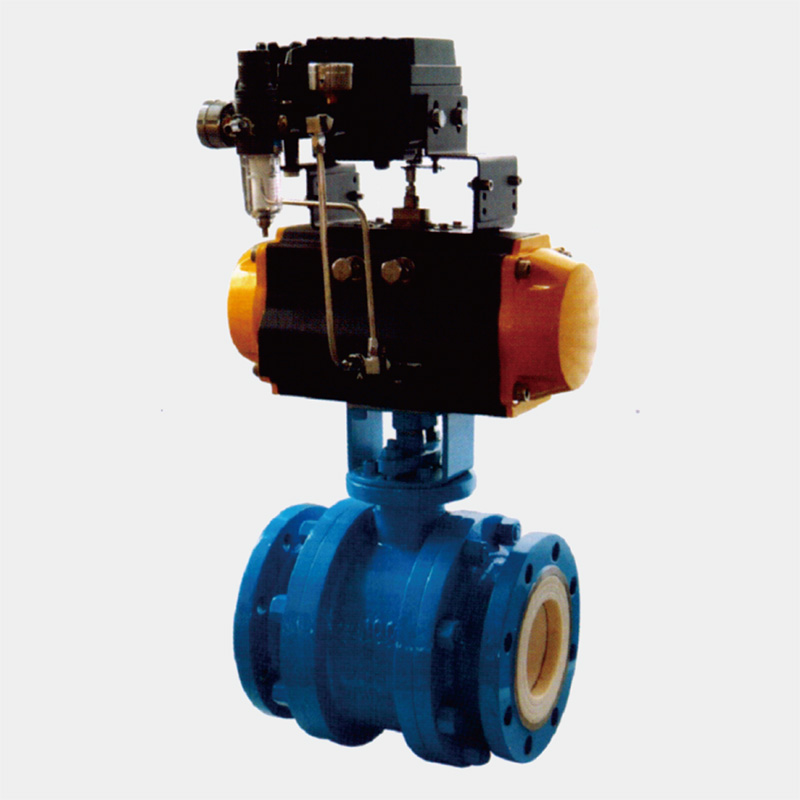

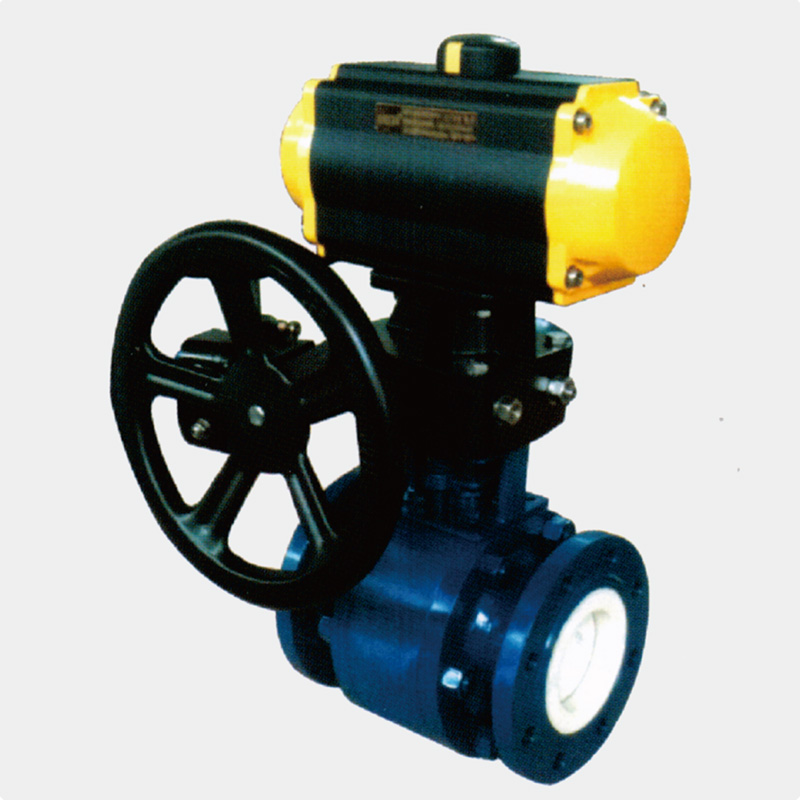

Q641TC pneumatic ceramic ball valve

Nominal diameter : DN15-250MM  Nominal pressure : PN1.0-4.0MPa  Use temperature : ≤ 250 °C

Ceramic inlet/outlet valve

Performance characteristics

• Erosion resistance, wear resistance, long service life ;
• there is a blowing device, which is not easy to accumulate ash, and the running resistance is small ;
• the starting load is small, the output torque is large, and the opening and closing action is reliable ;
• the open double valve plate sealing structure has two-way sealing when the valve is closed, and the sealing performance is good.

Applicable media

        It is suitable for dry ash system, slurry, water, steam and other media.

Application

        Power, cement, metallurgy, mining, papermaking, chemical and other enterprises dry ash, slurry transportation system.

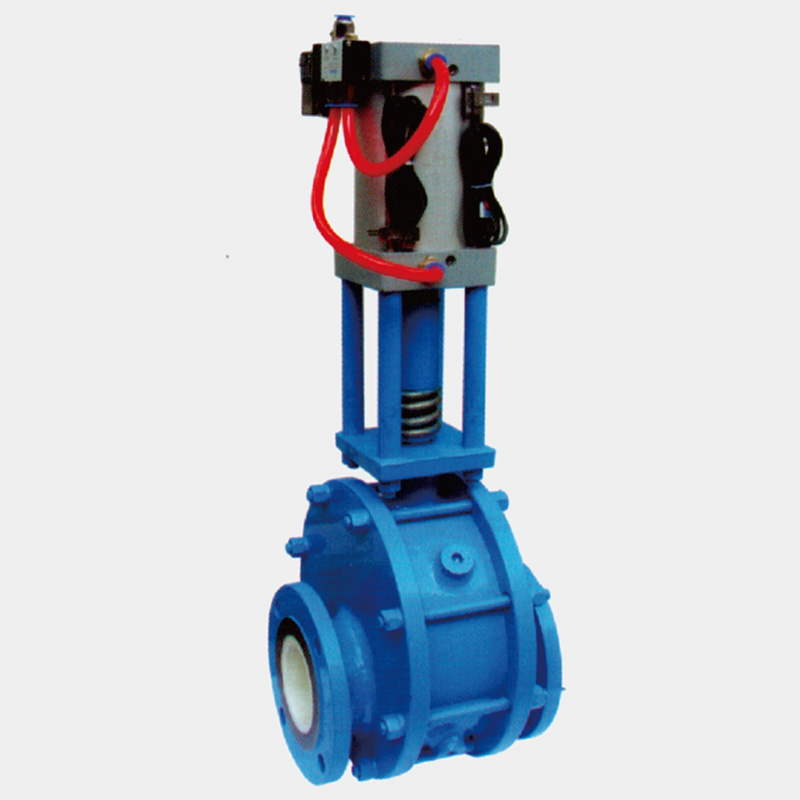

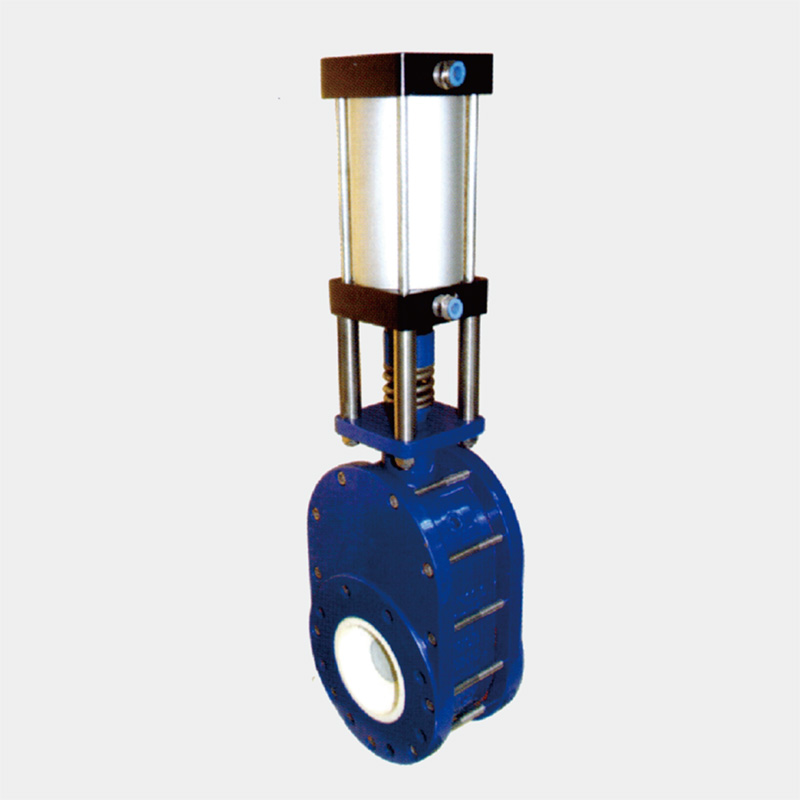

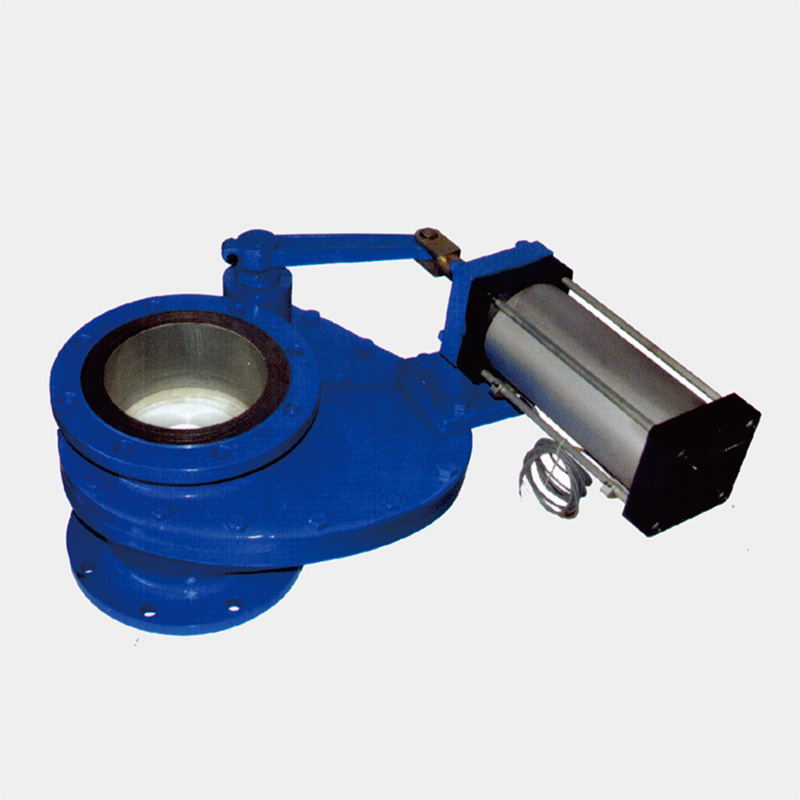

SZ644TC pneumatic ceramic discharge valve

Nominal diameter : DN40-300MM
Nominal pressure : PN1.0-2.5MPa
Use temperature : ≤ 200 °C

SZ674TC pneumatic ceramic discharge valve

Nominal diameter : DN40-300MM  Nominal pressure : PN1.0-2.5MPa  Use temperature : ≤ 200 °C

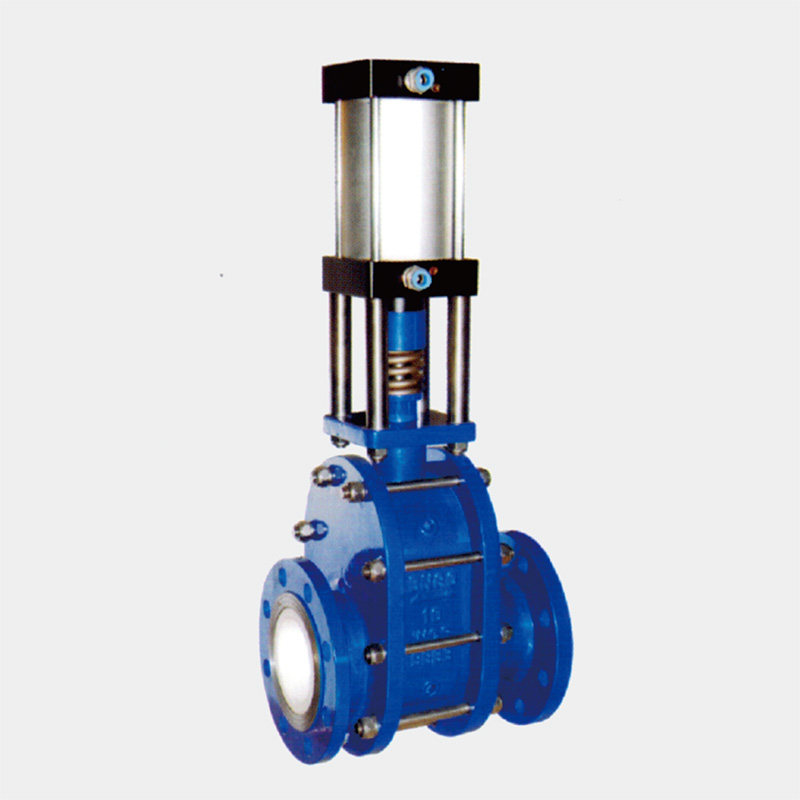

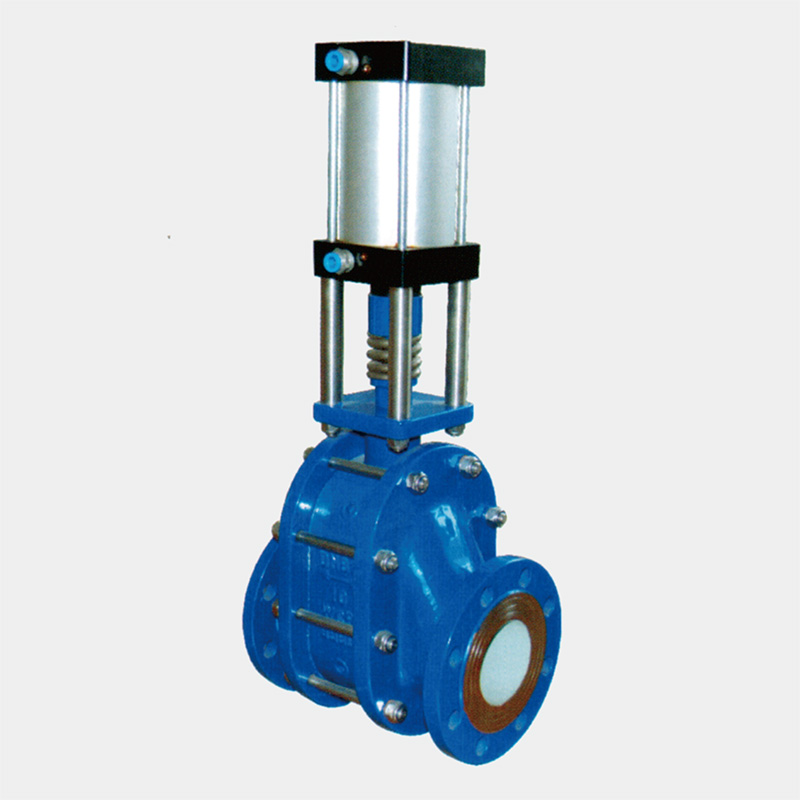

SZ644TC pneumatic ceramic double gate valve

Nominal diameter : DN40-300MM
Nominal pressure : PN1.0-2.5MPa
Use temperature : ≤ 200 °C

Self-compensating blanking valve with exhaust

Nominal diameter : DN150-300MM  Nominal pressure : PN1.6-2.5MPa  Usage temperature : ≤ 425 °C

SZ644TC pneumatic ceramic feed valve / balance valve

Nominal diameter : DN50-300MM
Nominal pressure : PN1.0MPa
Use temperature : ≤ 250 °C

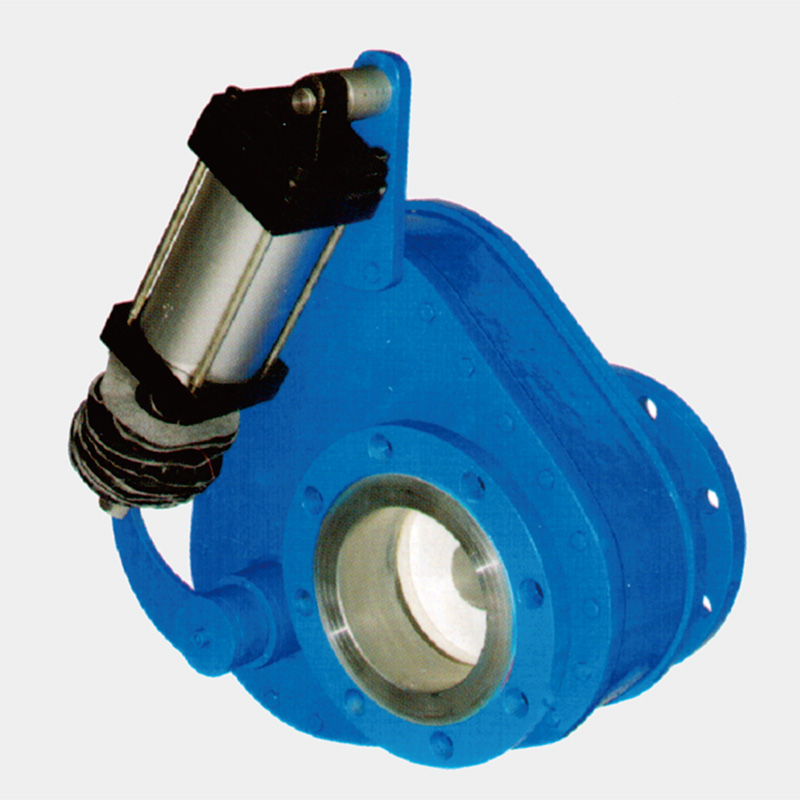

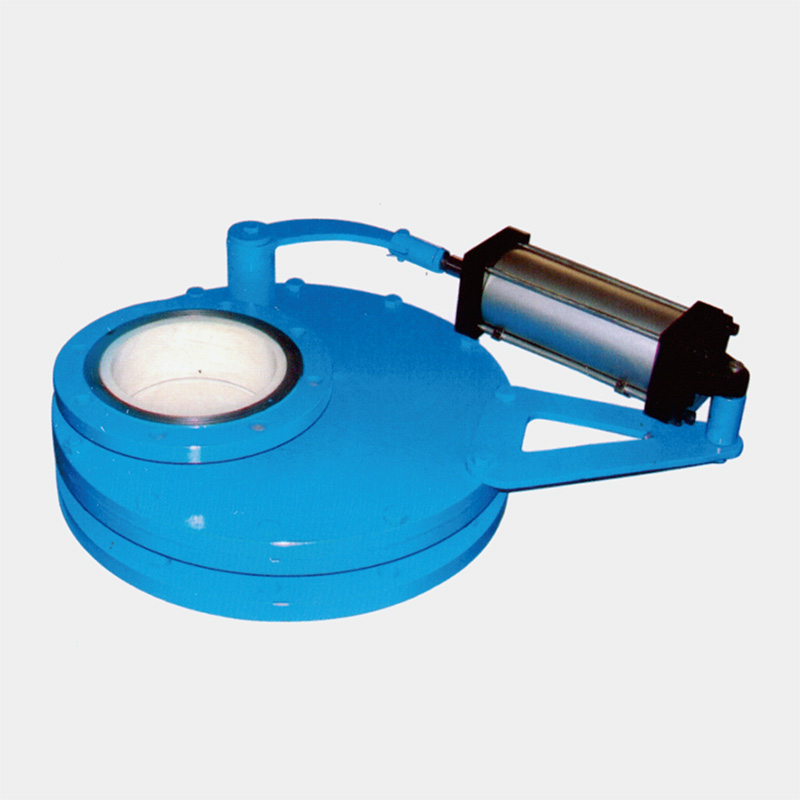

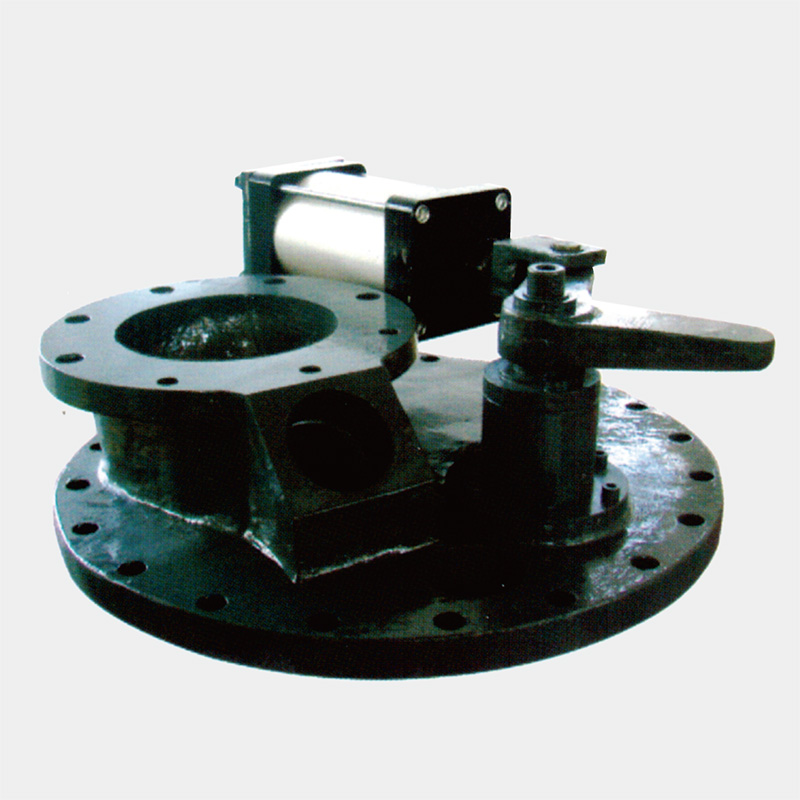

SZ643TC Pneumatic Swing Ceramic Feed Valve

Nominal diameter : DN150-350MM
Nominal pressure : PN1.0MPa
Use temperature : ≤ 250 °C

BZ643TC pneumatic ceramic disc valve

Nominal diameter : DN50-300MM
Nominal pressure : PN1.6-2.5MPa
Use temperature : ≤ 250 °C

SZ643TC pneumatic ceramic rotary discharge valve

Nominal diameter : DN50-200MM
Nominal pressure : PN0.6-1.6MPa
Use temperature : ≤ 250 °C

Ceramic knife gate valve

Performance characteristics

        The valve plate and valve seat are all made of high performance structural ceramics, which are resistant to erosion, wear, corrosion and high temperature.  The full flow of the valve material port has no obstacles and the flow is smooth ;  good sealing performance, no fouling phenomenon ;  the structure is compact, flexible to start, and can be installed at any angle.

Applicable media

        Suitable for high hardness granular media or corrosive media.

Application

        It is widely used in ash, mud, coal slurry, slurry, sewage and other solid, liquid-solid, gas-solid two-phase medium conveying system, especially suitable for thermal power plant stone coal system.

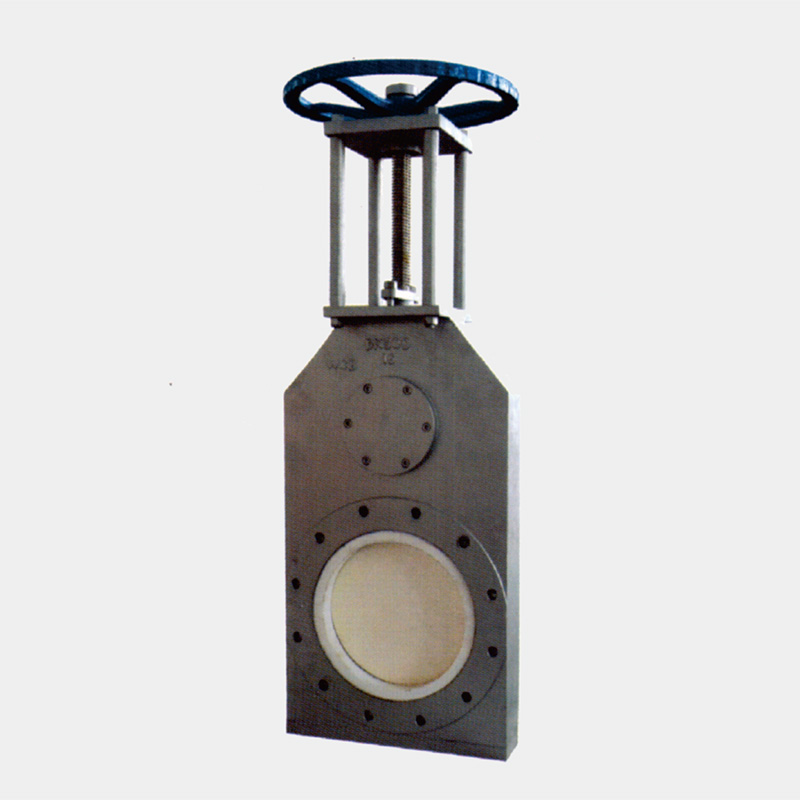

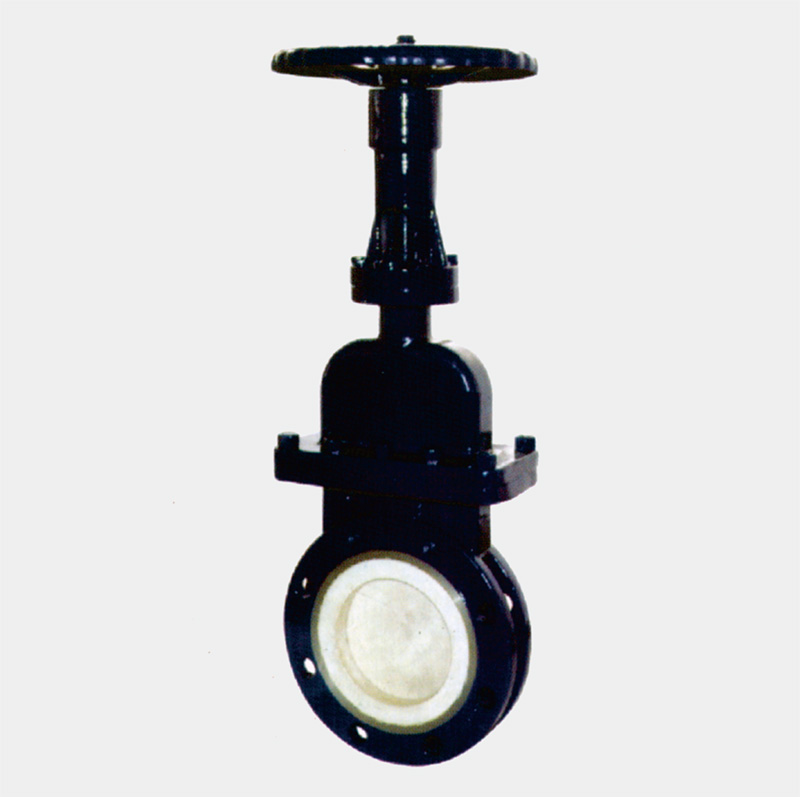

PZ73TC dark rod ceramic slurry valve

Nominal diameter : DN50-1000MM
Nominal pressure : PN1.6-2.5MPa
Use temperature : ≤ 250 °C

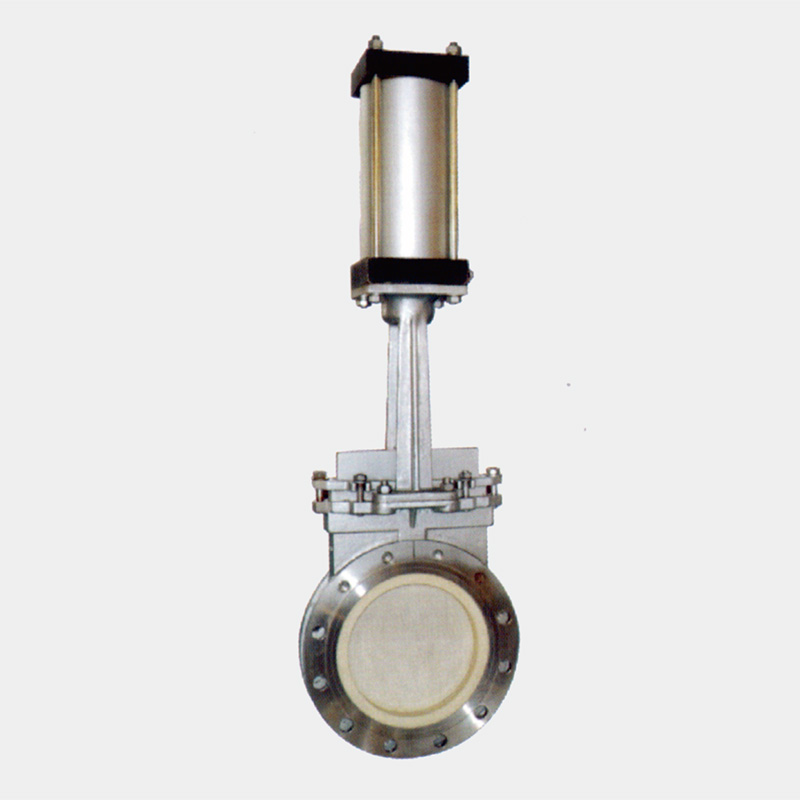

PZ673TC pneumatic ceramic knife gate valve

Nominal diameter : DN50-1000MM
Nominal pressure : PN1.6-2.5MPa
Usage temperature : ≤ 200 °C

Z643TC ceramic single plate valve gate valve

Nominal Diameter：DN50-200MM
Nominal Pressure：PN1.6MPa
Temperature：≤200℃

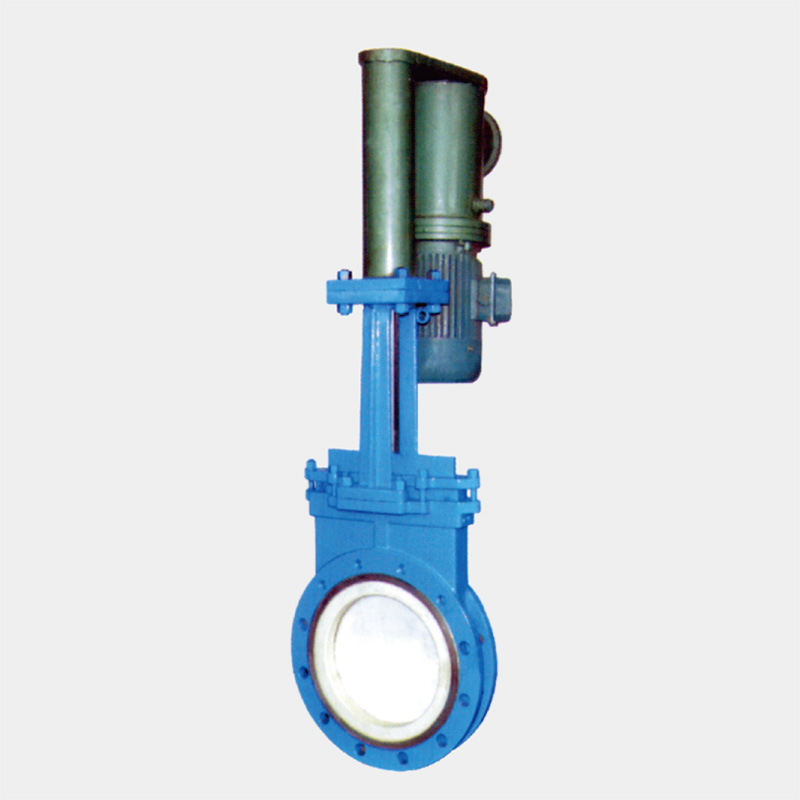

PZ73TC electro-hydraulic ceramic knife gate valve

Nominal diameter : DN50-600MM
Nominal pressure : PN1.0-4.0MPa
Usage temperature : ≤ 300 °C

Ceramic butterfly valve / globe valve / check valve

Performance characteristics

• The moving part adopts high-performance structural ceramics, super wear-resistant ;
• the flow characteristics tend to be linear and the regulation performance is good ;
• eccentric structure, reduce the friction of moving parts, prolong the service life of the valve ;
• small and light, easy to disassemble and repair ;
• the structure is simple and compact, the operating torque is small, and the rotary opening is fast.

Application

        It is widely used in petrochemical, metallurgy, papermaking, power station, oil refining, coal and other industries of all kinds of acid and alkali salt gas, liquid, high temperature steam, mud and ash conveying system as regulating flow or cutting medium.

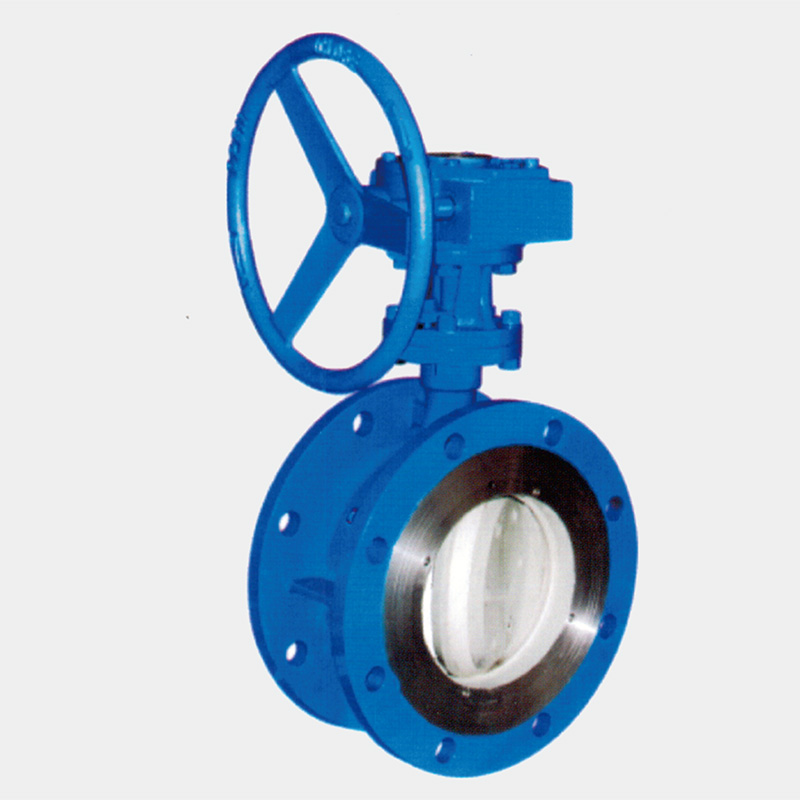

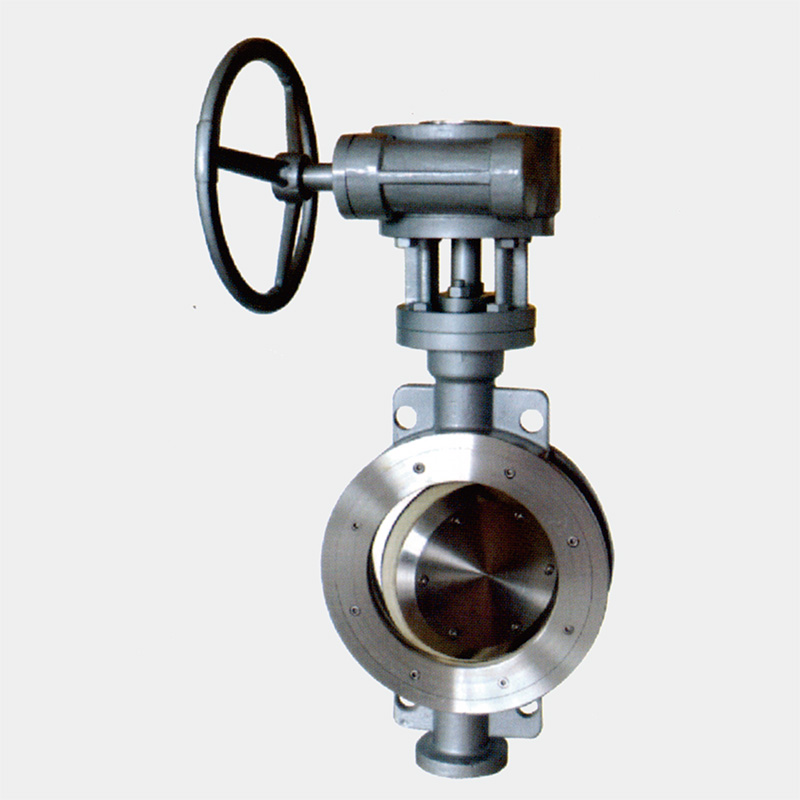

D341 manual ceramic butterfly valve

Nominal diameter : DN40-500MM
Nominal pressure : PN1.0-2.5MPa
Usage temperature : ≤ 350 °C

D371 ceramic butterfly valve

Nominal diameter : DN40-500MM
Nominal pressure : PN1.0-2.5MPa
Usage temperature : ≤ 350 °C

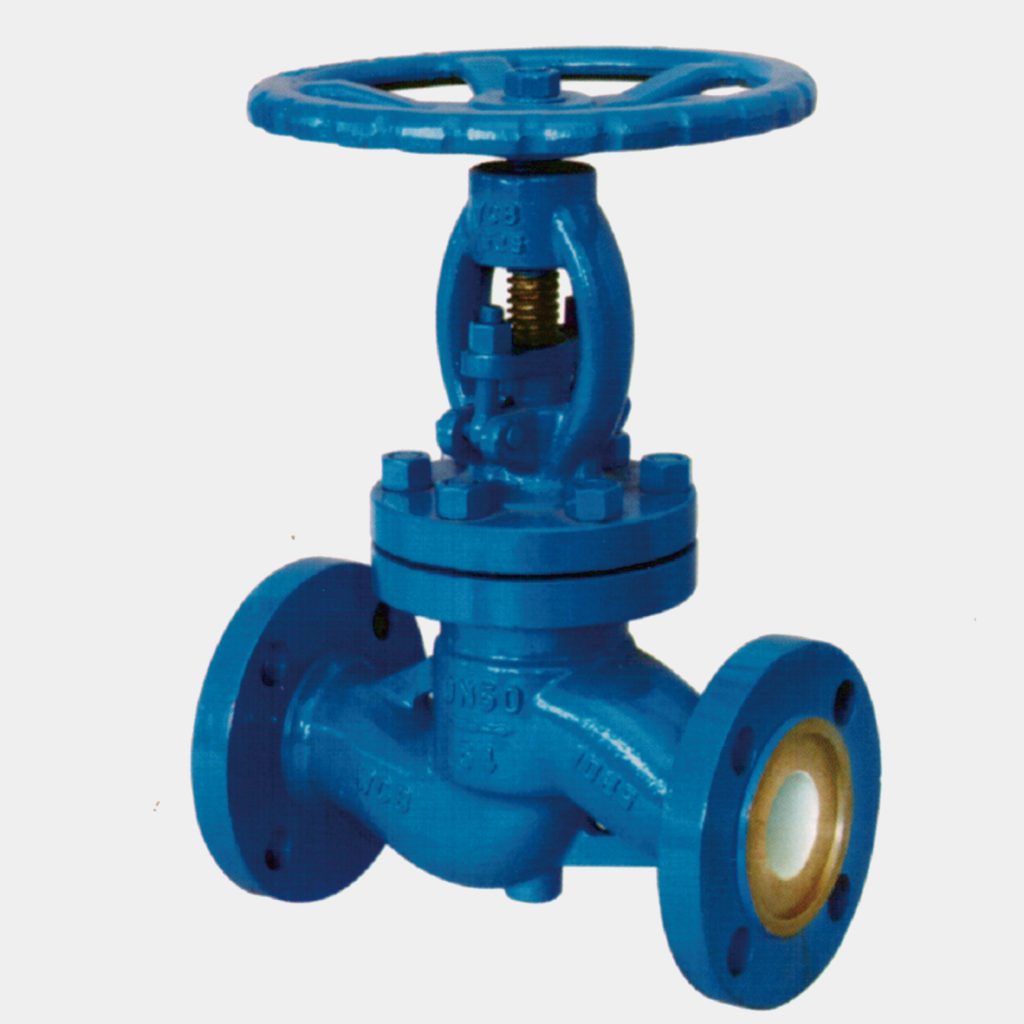

J41TC ceramic globe valve

Nominal diameter : DN15-200MM
Nominal pressure : PN1.6MPa
Use temperature : ≤ 200 °C

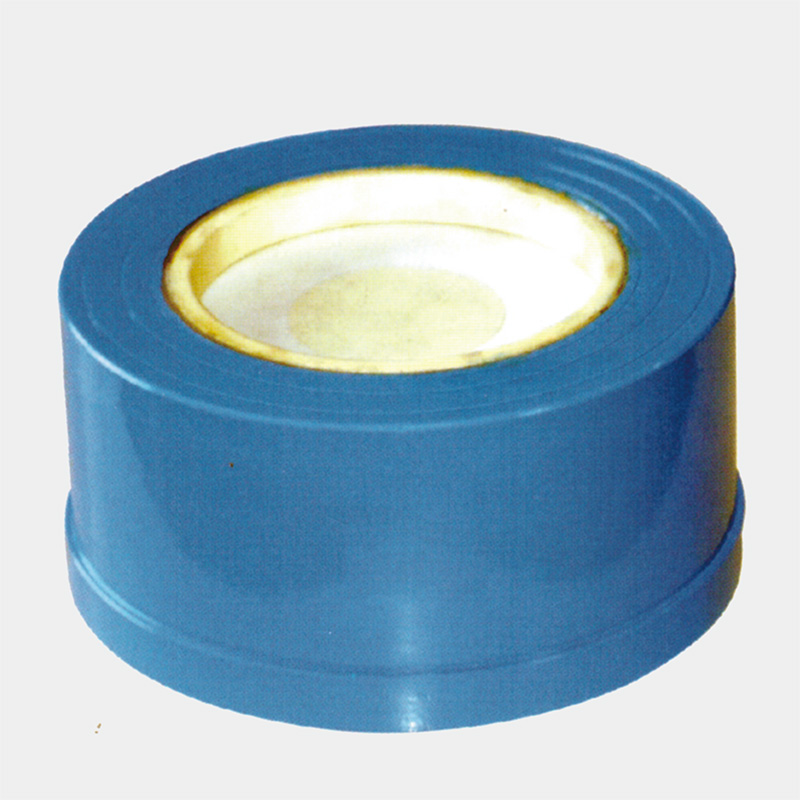

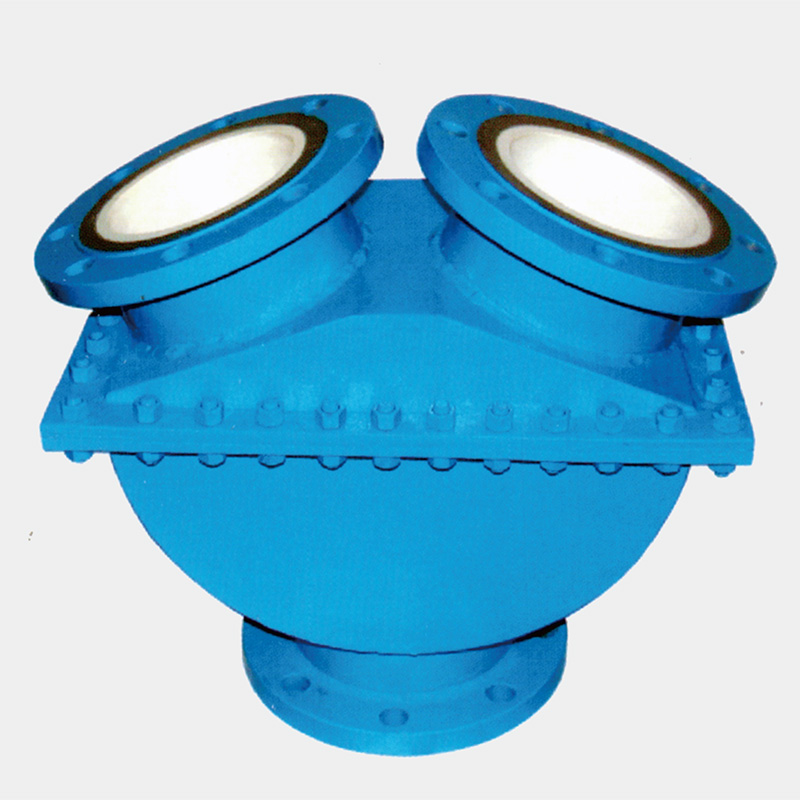

Ceramic slurry reversing check valve

Nominal diameter : DN150-500MM
Nominal pressure : PN1.0MPa
Use temperature : ≤ 100 °C

H42 vertical lift ceramic check valve

Nominal diameter : DN50-600MM
Nominal pressure : PN1.0MPa
Use temperature : ≤ 200 °C

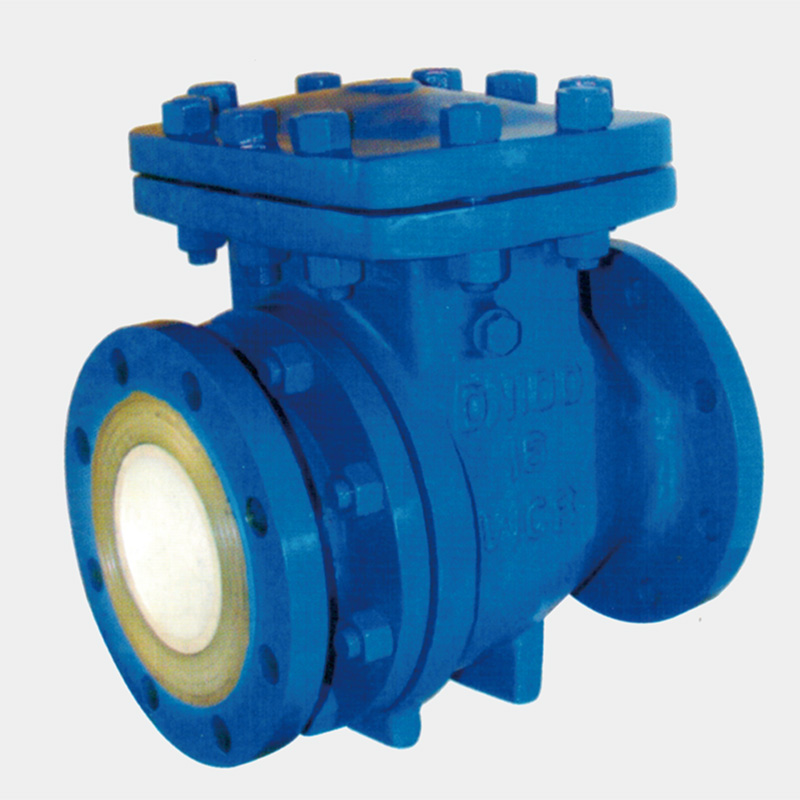

H44TC Revolving Ceramic Check Valve

Nominal diameter : DN100-400MM
Nominal pressure : PN1.0-2.5MPa
Usage temperature : ≤ 200 °C

Ceramic slag discharge valve

Performance characteristics

• The valve plate and valve seat are all made of high performance structural ceramics, which are resistant to erosion, wear, corrosion and high temperature.
• The outlet streamline design, the valve body does not accumulate slag, and the slag discharge effect is good.

Applicable media

        It is suitable for liquid-solid mixed media, such as ash, mud, cinder, slurry, sewage and so on.

Application

        Wear-resistant slag discharge valve is a professional valve for ash and slag removal system in thermal power plant. It can also be used for wear pipes in mine washing pipeline, coal preparation system and chemical system. Especially in the face of high wear, strong corrosion, high temperature and high pressure and other harsh conditions, it shows its excellent performance.

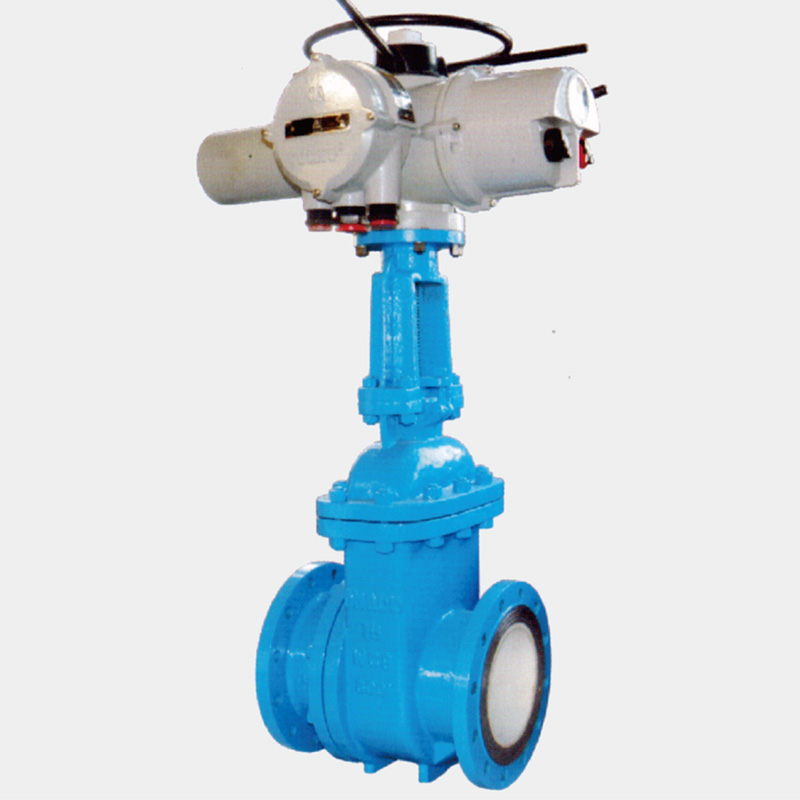

PZ941TC electric ceramic slag discharge valve

Nominal diameter : DN50-400MM
Nominal pressure : PN1.6-4.0MPa
Usage temperature : ≤ 300 °C
