Manual ceramic knife gate valve
The parts in contact with the medium are structural ceramic materials with very high chemical stability and hardness (Rockwell hardness HRC90). Therefore, the ceramic knife gate valve has very high wear resistance, corrosion resistance, erosion resistance, and good thermal insulation, thermal expansion is small.
Spec：Customization
Material：AL2O3
Color：White
Brand：WestTop
Submit Form
Consult immediately
Prev: Anti-wear treatment for heavy media cyclone (HMC)
Next: Anti-friction treatment program for pulverized coal burner ceramics
DetailReview(0)

Nominal diameter:DN50-1000MM

Nominal pressure:PN1.0-2.5MPa

Usage Temperature:≤200℃



Performance Features


The parts in contact with the medium are structural ceramic materials with very high chemical stability and hardness (Rockwell hardness HRC90). Therefore, the ceramic knife gate valve has very high wear resistance, corrosion resistance, erosion resistance, and good thermal insulation, thermal expansion is small.


Ceramic knife gate valve is manufactured with advanced grinding equipment, high precision gate plate, good surface quality, and the valve seat on the tight solid, the use of ZrO2 ceramic self-lubricating properties, you can achieve very good sealing performance.


Ceramic good wear resistance, so that the ball valve is durable, very high reliability, long service life, is titanium alloy valve and monel valve 2-4 times.


Applicable media

Dry ash, slurry, cinder and solid particles.


Range of application

Metallurgy, mining, electric power, coal transmission, cement, water treatment and other industries.

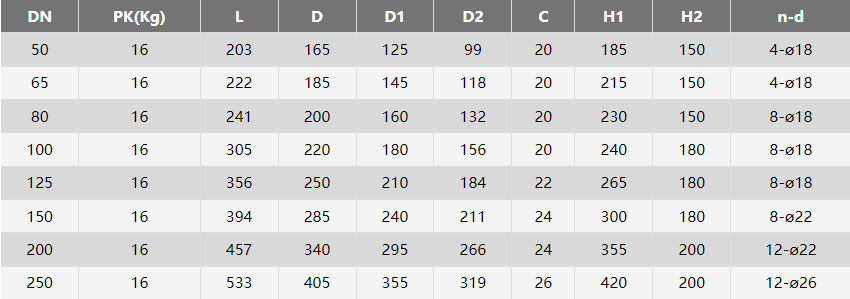

Specifications and technical parameters
