Chute / hopper wear-resistant linings plate
WestTop ® can customize different specifications of wear-resistant liners. The base plate materials can be carbon steel, stainless steel and alloy. The wear-resistant layer can be ceramic, alloy ceramic, rubber composite ceramic, polyurethane composite ceramic, surfacing and so on. The installation methods can be welding, countersunk bolts, expansion bolts, etc.
Spec：Customization
Brand：WestTop
Submit Form
Consult immediately
Prev: Anti wear treatment of fan impeller
Next: Side baffle of alloy ceramic roller press
DetailReview(0)



Product Introduction


Westttop can customize the production of different specifications of wear-resistant linings，The bottom plate material can be selected as carbon steel, stainless steel and alloy, and the wear-resistant layer can be selected as ceramic, alloy ceramic, rubber composite ceramic, polyurethane composite ceramic, surfacing and so on. The installation methods can be welding, countersunk bolts, expansion bolts, etc.

Optional materials
ceramics:Alumina wear resistant ceramics/Zirconia Ceramics/Alloy ceramics/alloy steel wear resistant plates
Adhesive：WTHV-800

Operating temperature
300℃-800℃

Suitable medium
Raw coal, coke, ore, slag, mineral powder, cement clinker, etc.

Application scope
1. Iron and Steel industry：Coke hopper, hopper, ore transfer hopper ;
2. Thermal power industry：coal falling hopper, vertical mill feed chute ;
3. Cement industry：ore chute, crusher hopper, V-type feeding chute ;
4. Mineral processing industry : coke hopper, hopper, ore transfer hopper ;
5. Coal industry : coal falling hopper ;
6. Port industry : mooring head fixed hopper, belt transfer station hopper, belt transfer station chute ;
7. Chemical industry : coal hopper ;

Optional process

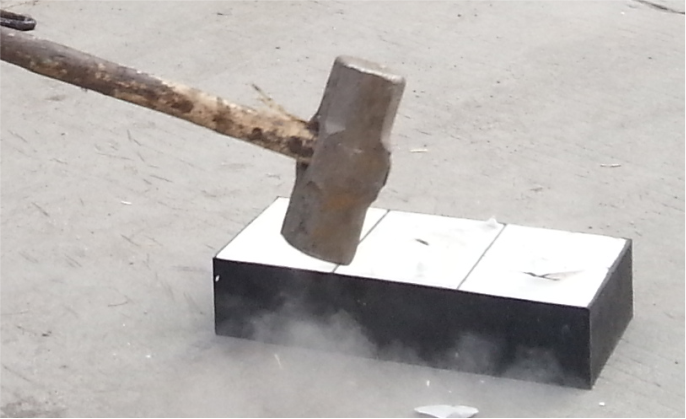

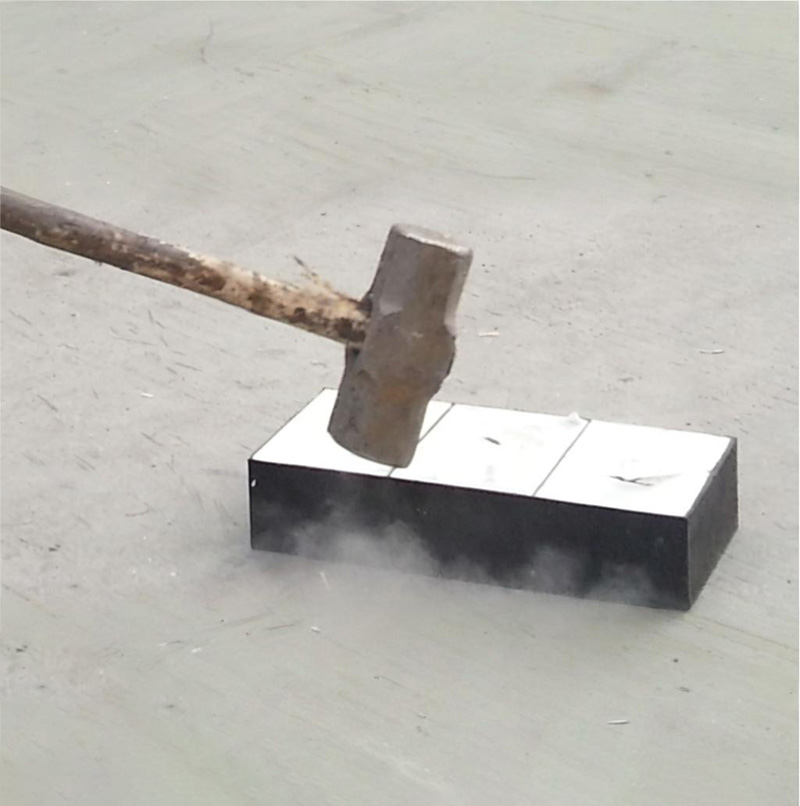

Bonding / stud welding / dovetail / impact resistance / ceramic rubber composite




Product Images

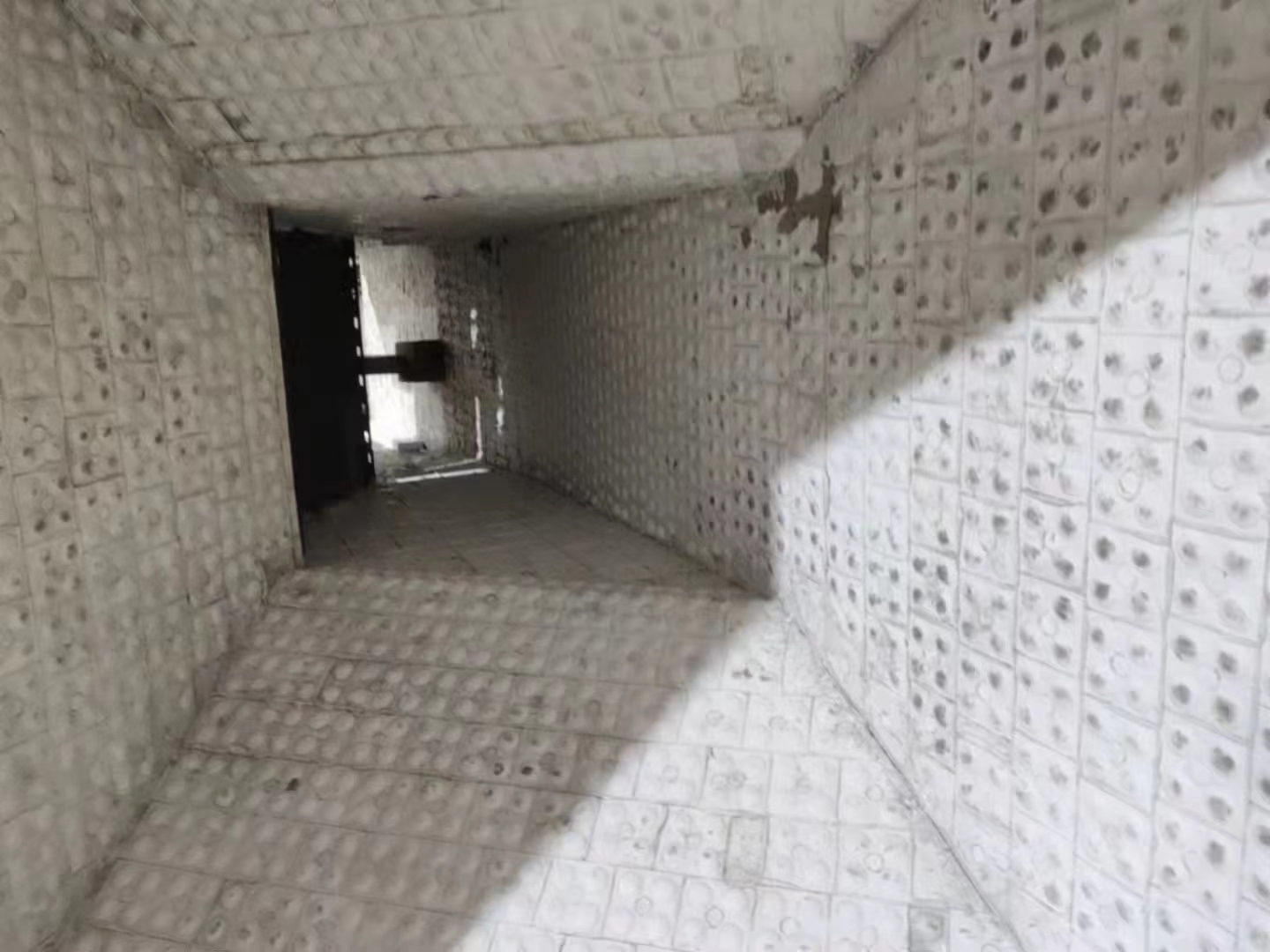

Welded wear-resistant ceramic lining plate(WT-W)

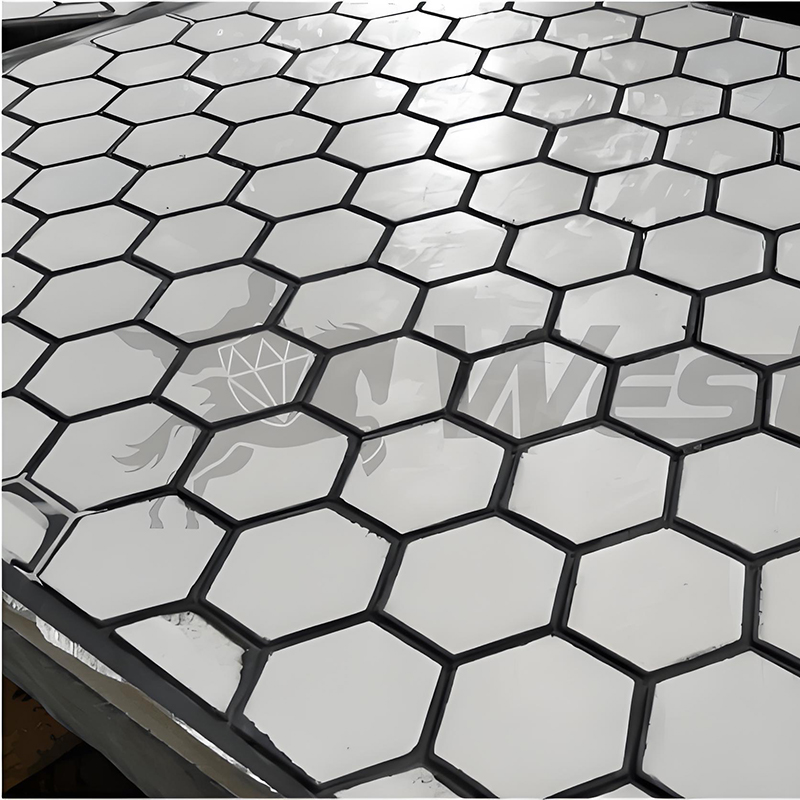

                wear resisting ceramic liners

Welded wear-resistant ceramic lining plate(WT-W)
